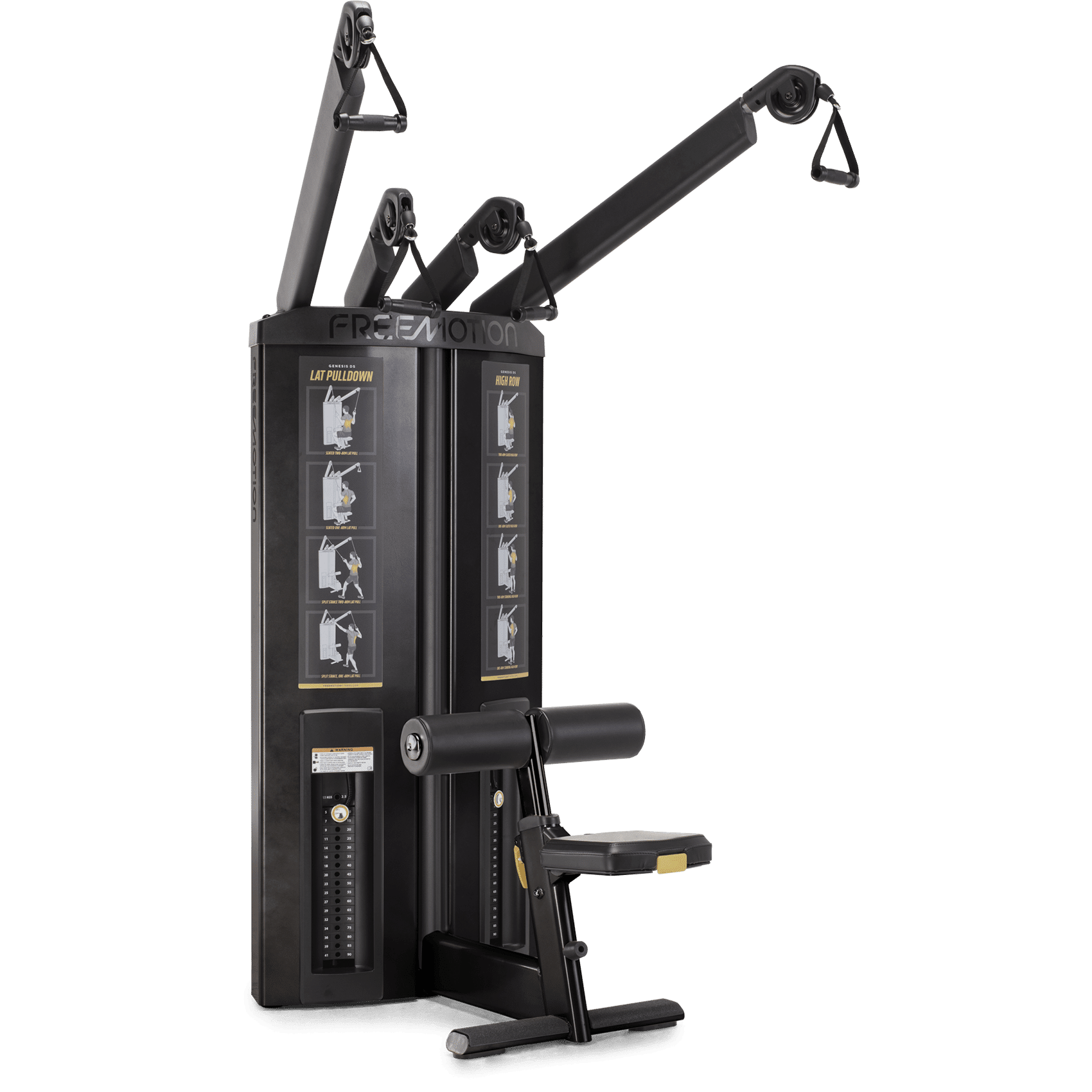

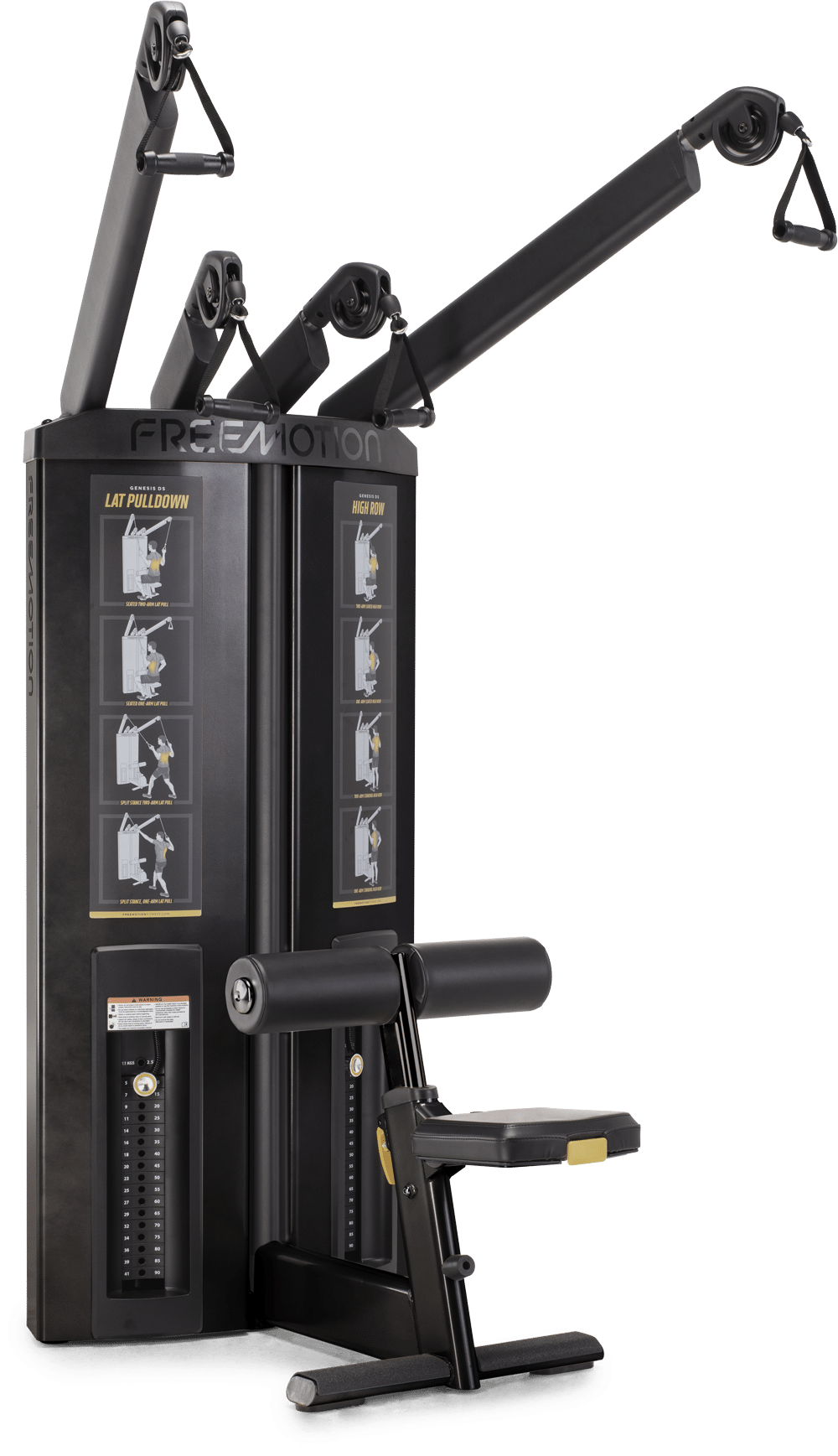

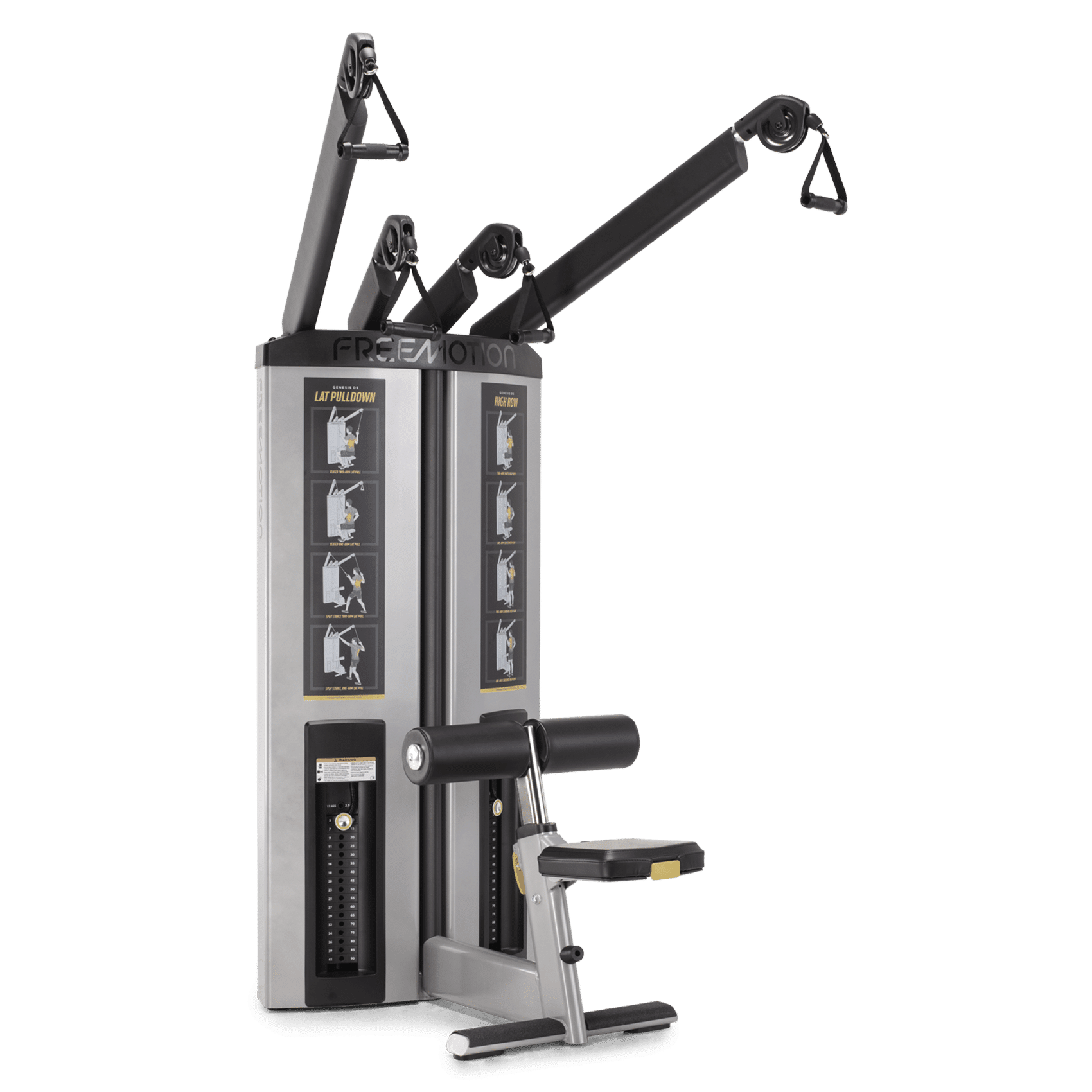

Freemotion GENESIS DS™ Lat Pulldown/High Row GD502

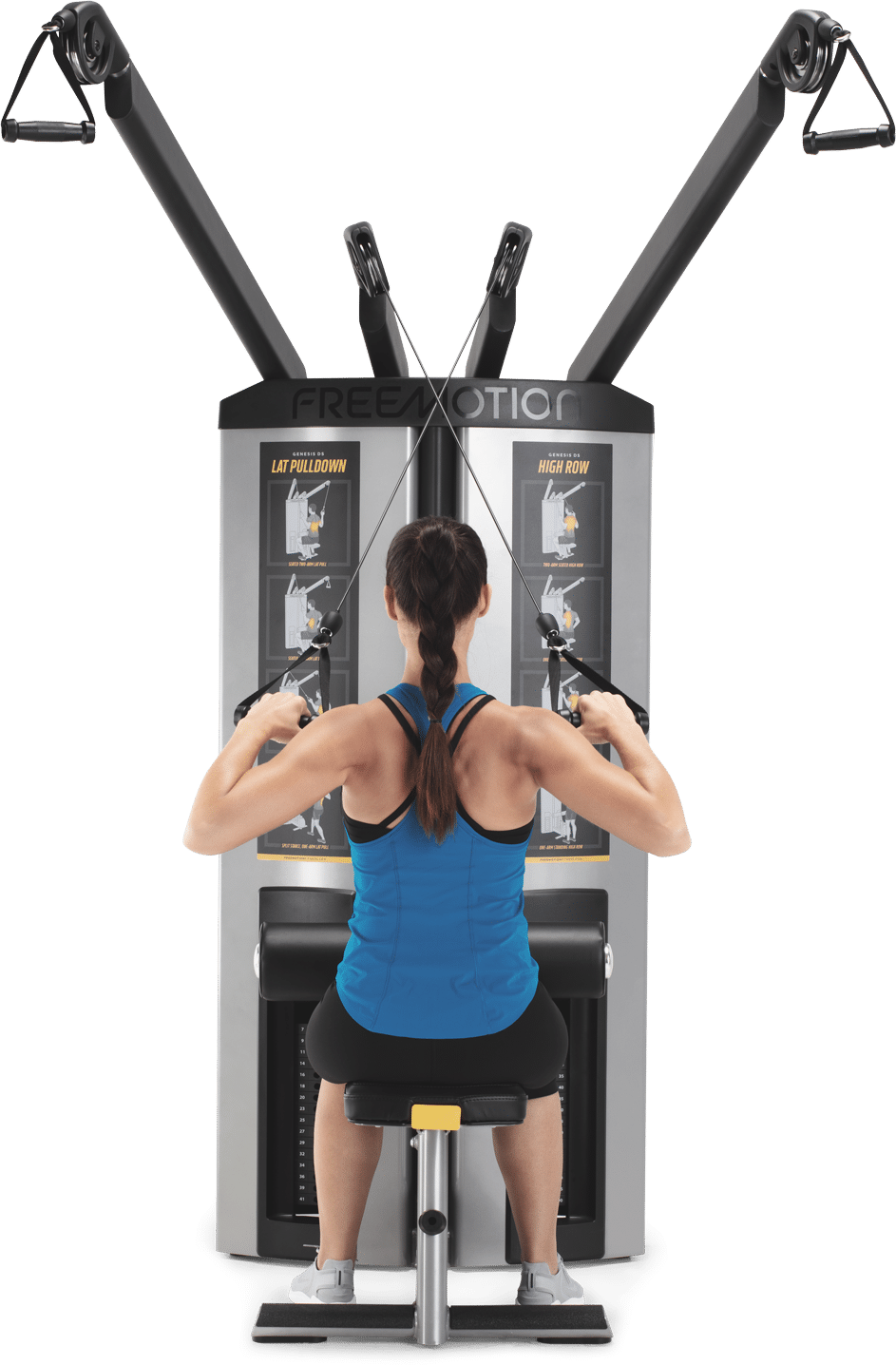

Freemotion GENESIS DS™ Lat Pulldown/High Row engages the arms, shoulders, back and stabilizer muscles to improve overall core strength and balance. The adjustable thigh pads roll for comfort and moves vertically to secure the lower body to focus on the back. Padded seat pivots out of the way to quickly transition to standing exercises. With the seat folded, the machine becomes wheelchair accessible.

DUAL STATIONS Training two body parts on the same machine saves valuable floor space. Users can quickly transition to different exercises for metabolic training.
ISOLATION TO INTEGRATION The seat features adjustable thigh pads to isolate the lower body. Users can simply fold the seat away to work out unsupported and integrate more muscle groups.

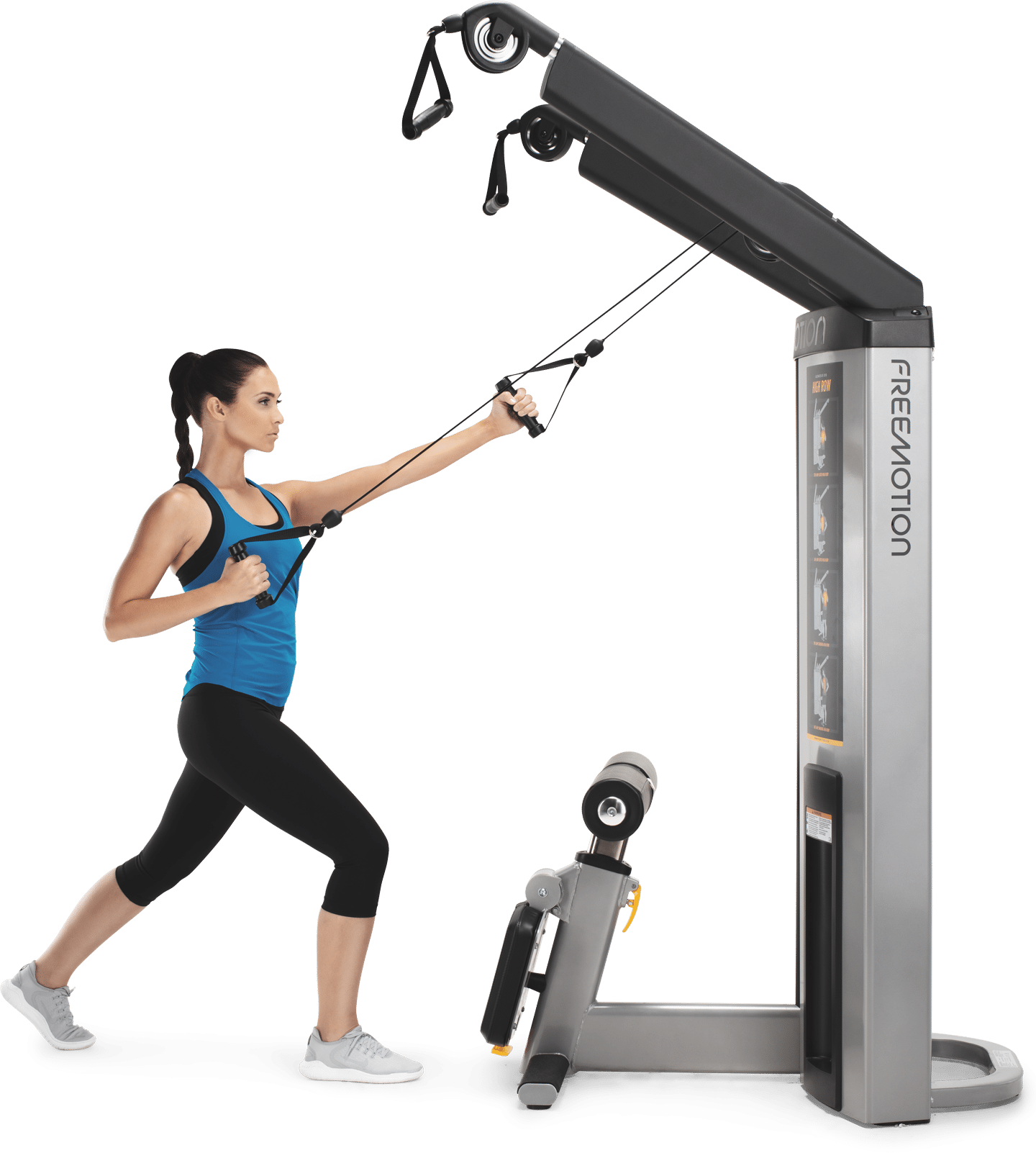

FREEDOM TO MOVE The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
MOVEMENT VARIETY Handles move independently for single and alternating arm exercises.

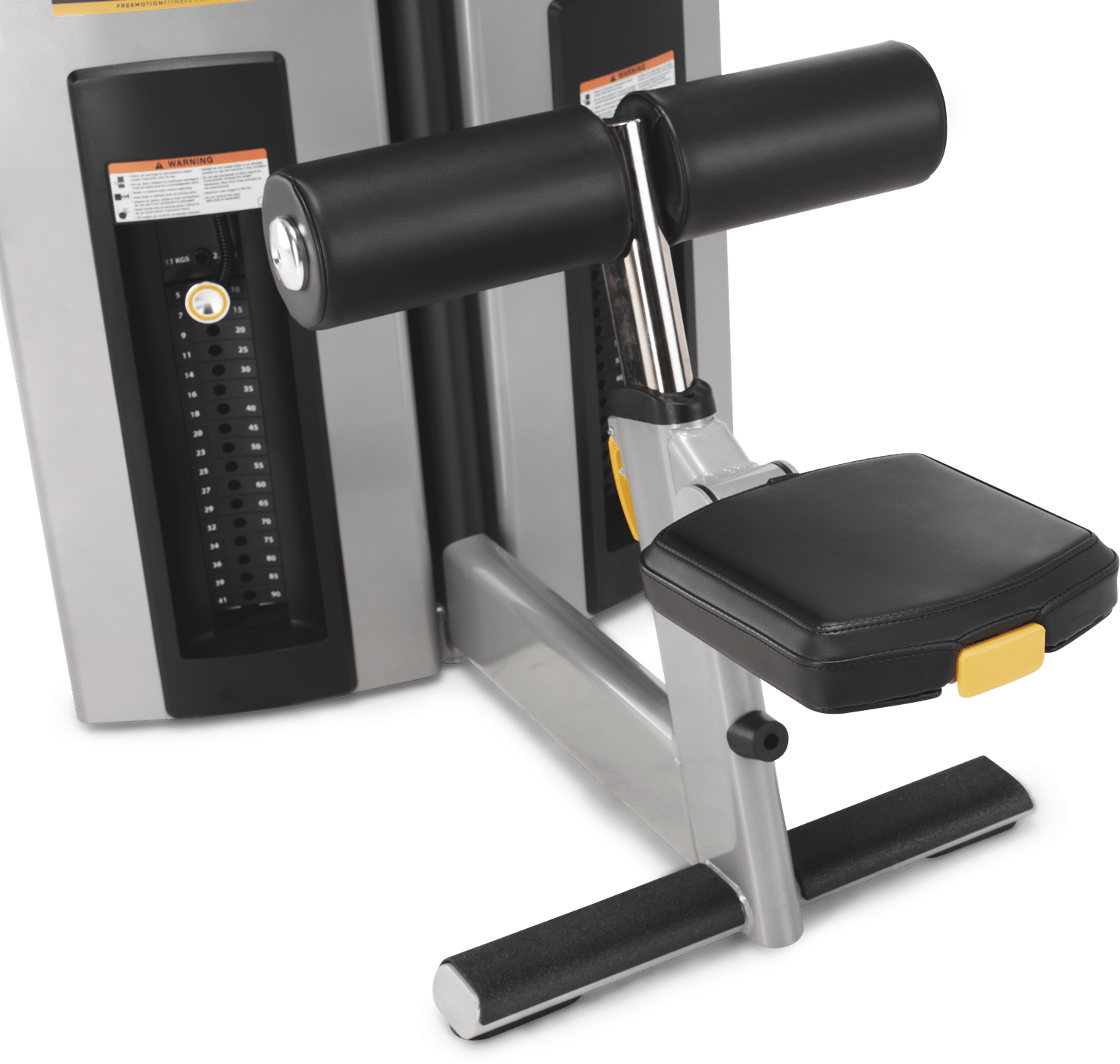

PADDED SEAT AND THIGH PADS Thigh pads are contoured and swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.
EXTENSIVE CABLE TRAVEL Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
ENCLOSED WEIGHT STACKS The weight stacks are enclosed to limit access to moving parts for safety.
BUILT TO LAST Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
KICK PLATES Large 16-gauge, stainless steel kick plates protect the machine from wear and tear.



  • Instructional Placards Yes
  • Adjustments Pivot seat pad for standing lat and row movements
  • Resistance 1 arm: 90 lb / 40.8 kg
    2 arms: 180 lb / 81.6 kg
  • Seat Vinyl with 2 in / 5 cm thick foam
  • Pulleys Aluminum swivel pulleys
  • Cable Travel in (cm) 72 in (182.8 cm) per arm
  • Rubber Feet Soft PVC
  • Maximum User Weight 400 lb / 181.4 kg
  • ADA Compliant Wheelchair Accessible


  • Weight Stack QTY 2 – 180 lb / 81.6 kg weight stacks
  • Drop Down Weight N/A
  • Weight Stack Configuration 2 – 10 lb top plates, 34 – 10 lb plates
    2 – 4.5 kg top plates, 34 – 4.5 kg plates
  • Standard Frame Color Black River
  • Optional Frame Color N/A
  • Plastic Color Ebony
  • Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color Custom colors available upon request


  • Dimensions L x W x H 54 x 48 x 84 in / 137.1 x 121.9 x 213.3 cm
  • Footprint 54 x 48 in / 137.1 x 121.9 cm
  • Weight 709.8 lb / 322 kg
  • Shipping Dimensions Box 1: 74.8 x 38.9 x 47.5 in / 198.9 x 99 x 120.7 cm
    Box 2: 38.9 x 11.8 x 5.1 in / 99 x 29.9 x 13 cm
  • Shipping Weight 830 lb / 376.6 kg
With over 20 years of industry-leading experience, Freemotion understands operators’ needs and exercisers’ expectations better than anyone else. Freemotion is a subsidiary of iFIT Health & Fitness Inc., whose family of industry-leading brands, including NordicTrack, ProForm, Weider, Sweat and 29029. Freemotion delivers transformative experiences with its groundbreaking products found in facilities around the world.

To see the quality of our used and new commercial gym equipment with your own eyes call us 02 9008 1481 or jump online and look at just of a sample of what we have in our 2,000 square metre warehouse in Banksmeadow. Pricing does not include delivery, installation or GST. We can also help you with finance available through Fitlease.
