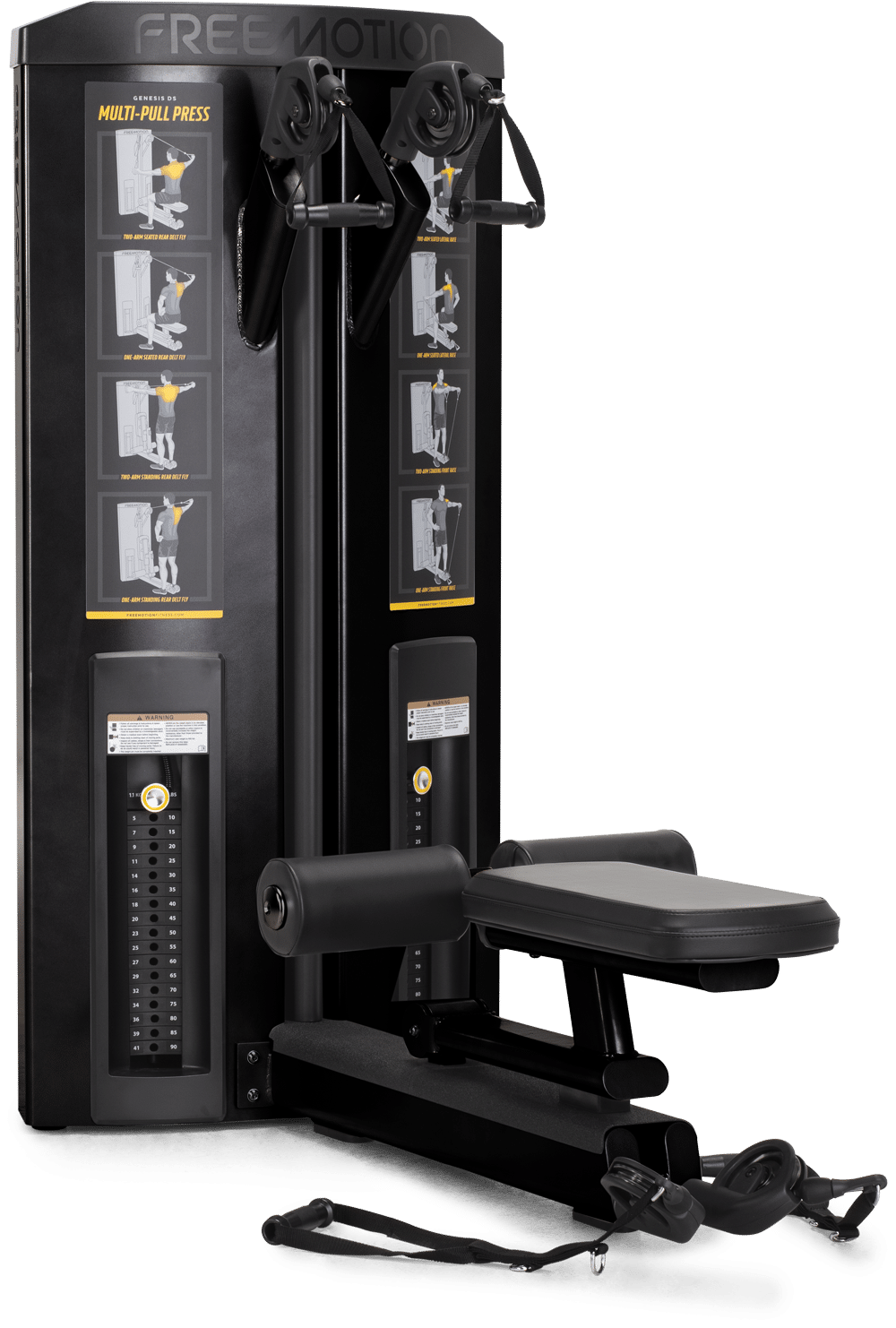

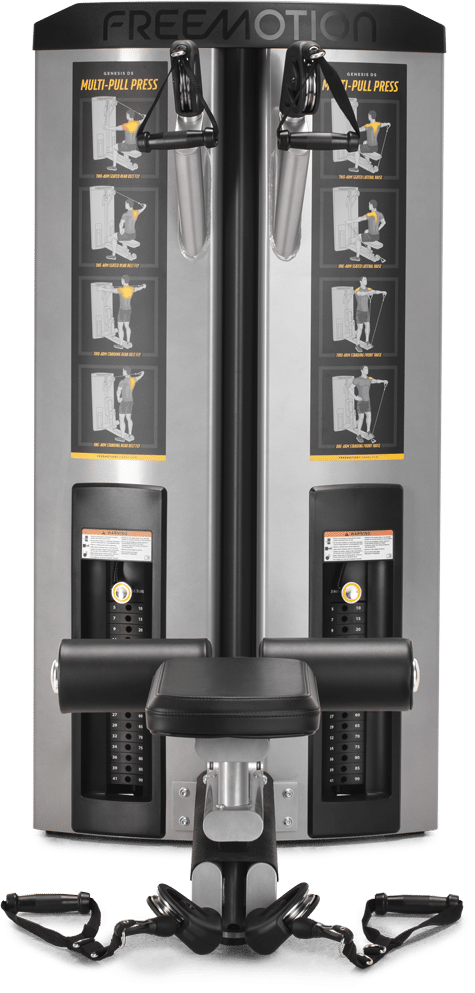

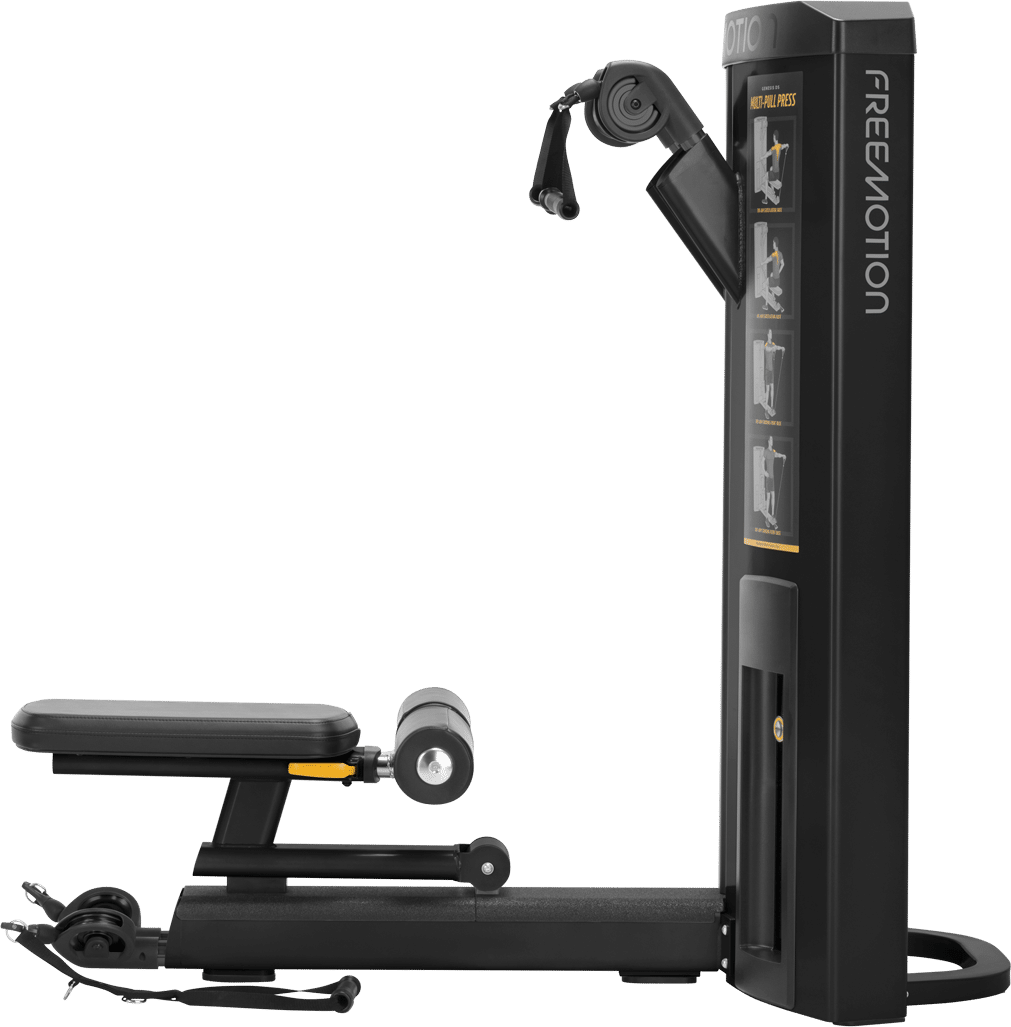

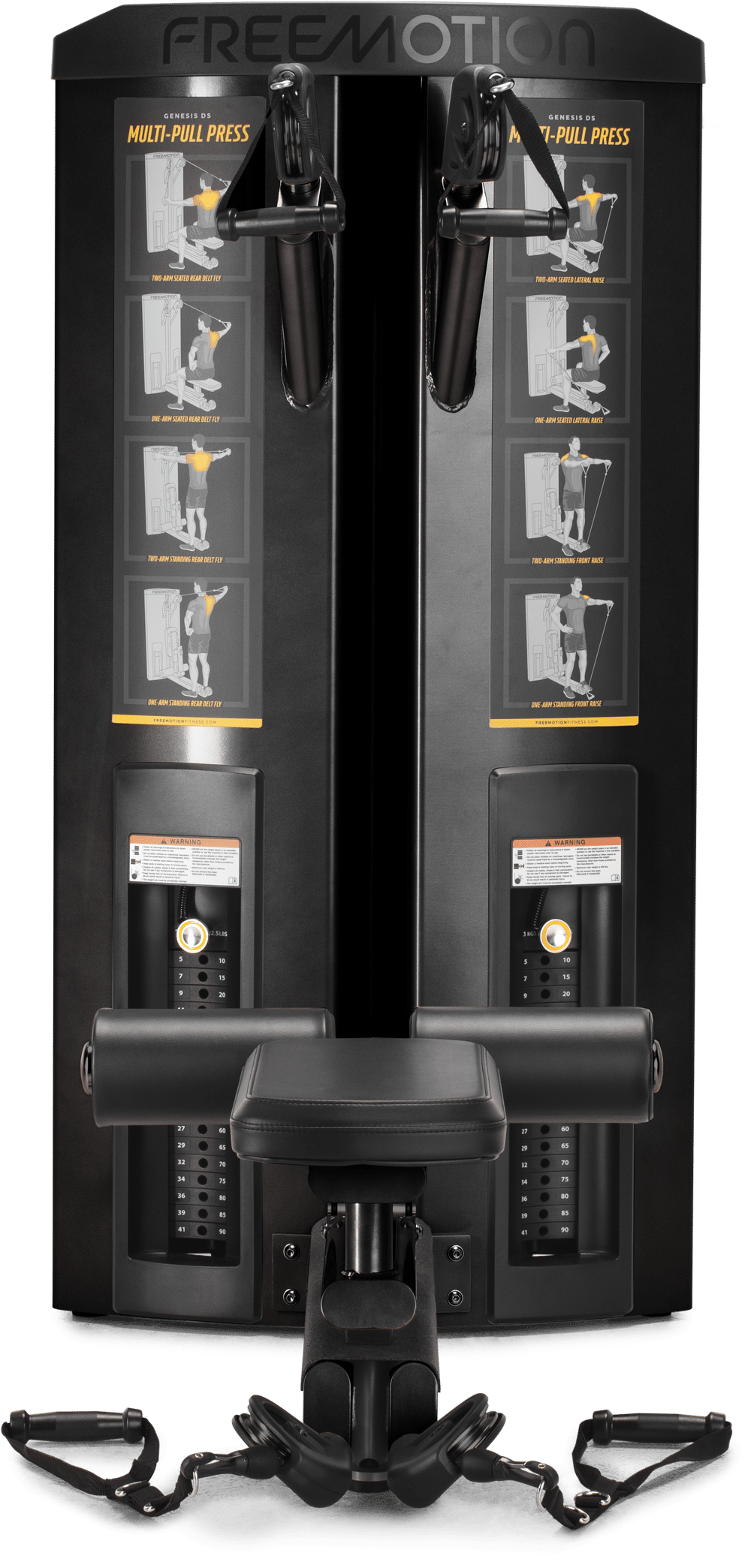

Freemotion GENESIS DS™ Multi-Pull Press GD505

Facility owners will love the space-saving design of Freemotion GENESIS DS™ Multi-Pull Press GD505. Trainers will love the versatility. And users will love its intuitive function. Constructed with heavy-duty steel with an electrostatic powder coating makes this machine durable to live up to its popularity on the strength floor. The GENESIS DS™ Multi-Pull Press gives trainers and users the freedom to add challenges to their workout without sacrificing function.

HIGH/LOW PULLEY EXERCISE OPTIONS The versatility in exercise options are only limited by imagination. High and low pulley options allow users to train virtually any muscle group.
ISOLATION TO INTEGRATION The machine features a seat and adjustable thigh pads to isolate the lower body. Users can simply fold the seat away to work out unsupported and integrate more muscle groups.
FREEDOM TO MOVE The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
PADDED SEAT AND THIGH PADS Rolled thigh pads swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.
EXTENSIVE CABLE TRAVEL Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
ENCLOSED WEIGHT STACKS The weight stacks are enclosed to limit access to moving parts for safety.
BUILT TO LAST Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
KICK PLATES Large 16-gauge, stainless steel kick plates protect the machine from wear and tear.



  • Instructional Placards Yes
  • Adjustments Pivot seat/thigh pad for standing movements
  • Resistance 1 arm: 90 lb / 40.8 kg
    2 arms: 180 lb / 81.6 kg
  • Seat Vinyl with 2 in / 5 cm thick foam
  • Pulleys Aluminum swivel pulleys
  • Cable Travel in (cm) 72 in / 182.8 cm per arm
  • Rubber Feet Soft PVC
  • Maximum User Weight 400 lb / 181.4 kg


  • Weight Stack QTY 2 – 180 lb / 81.6 kg weight stacks
  • Drop Down Weight N/A
  • Weight Stack Configuration 2 – 10 lb top plates, 34 – 10 lb plates
    (2 – 4.5 kg top plates, 34 – 4.5 kg plates)
  • Standard Frame Color Black River, Platinum Sparkle
  • Optional Frame Color N/A
  • Plastic Color Ebony
  • Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
  • Optional Upholstery Color Custom colors available upon request


  • Dimensions L x W x H 66 x 31 x 64 in / 167.6 x 78.7 x 162.5 cm
  • Footprint 66 x 31 in / 167.6 x 78.7 cm
  • Shipping Dimensions 74.8 x 38.9 x 33.5 in / 189.9 x 99 x 85.1 cm
  • Shipping Weight 764.7 lb / 346.9 kg
With over 20 years of industry-leading experience, Freemotion understands operators’ needs and exercisers’ expectations better than anyone else. Freemotion is a subsidiary of iFIT Health & Fitness Inc., whose family of industry-leading brands, including NordicTrack, ProForm, Weider, Sweat and 29029. Freemotion delivers transformative experiences with its groundbreaking products found in facilities around the world.

To see the quality of our used and new commercial gym equipment with your own eyes call us 02 9008 1481 or jump online and look at just of a sample of what we have in our 2,000 square metre warehouse in Banksmeadow. Pricing does not include delivery, installation or GST. We can also help you with finance available through Fitlease.
