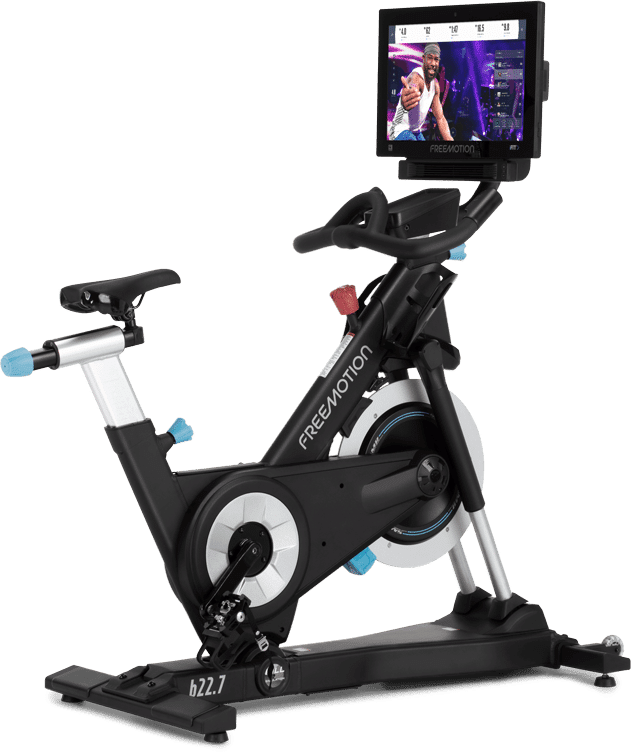

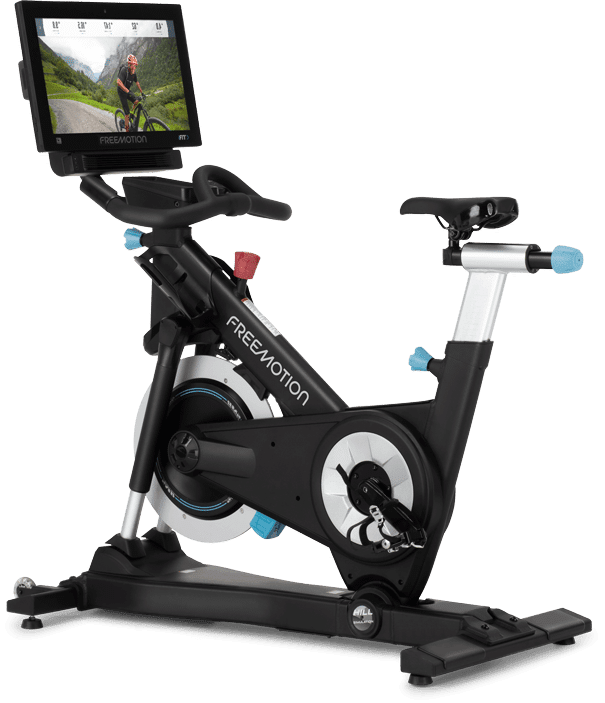

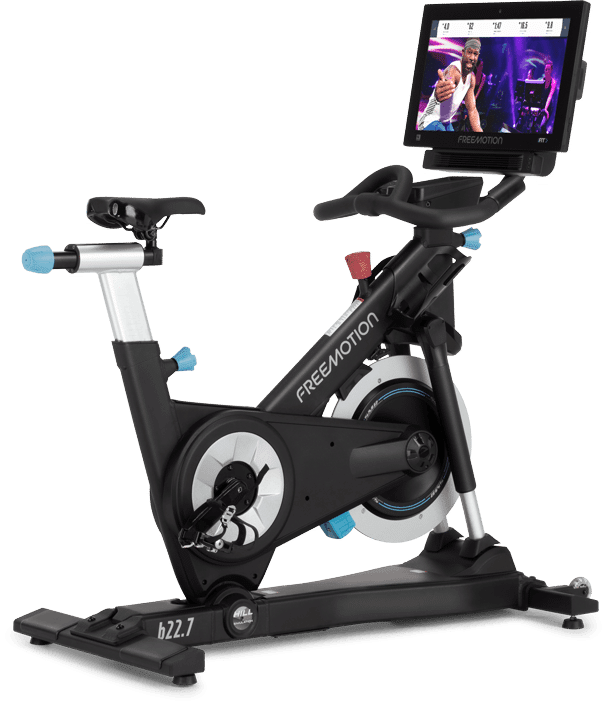

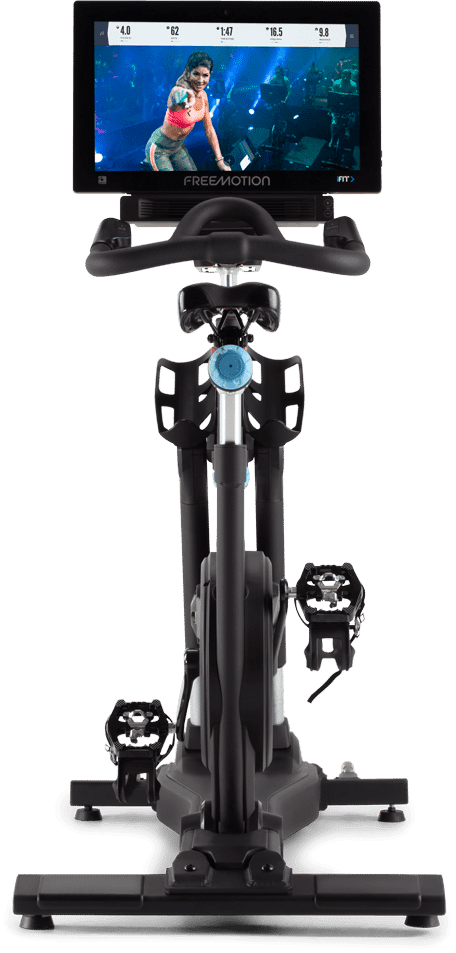

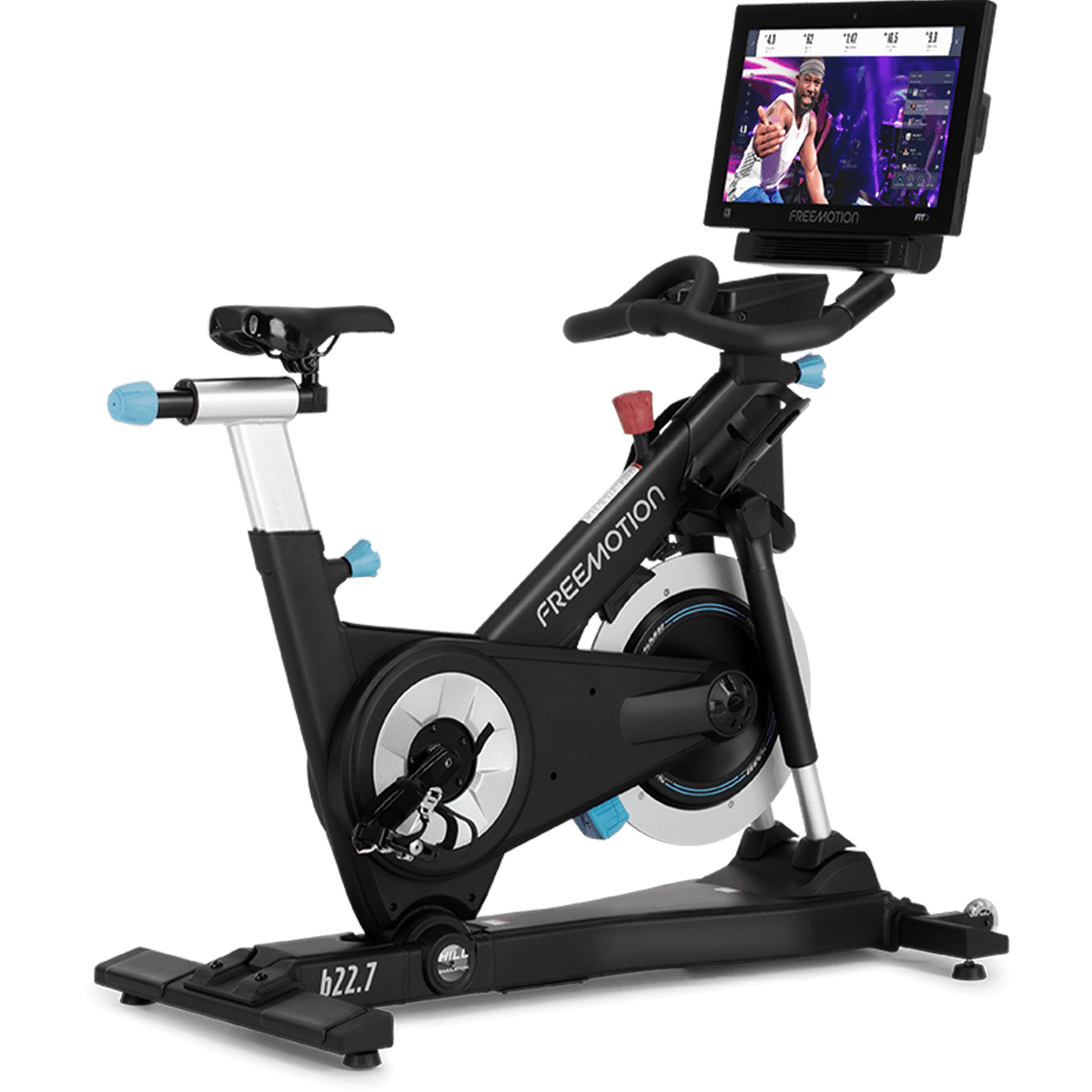

Freemotion b22.7 COACHBIKE™

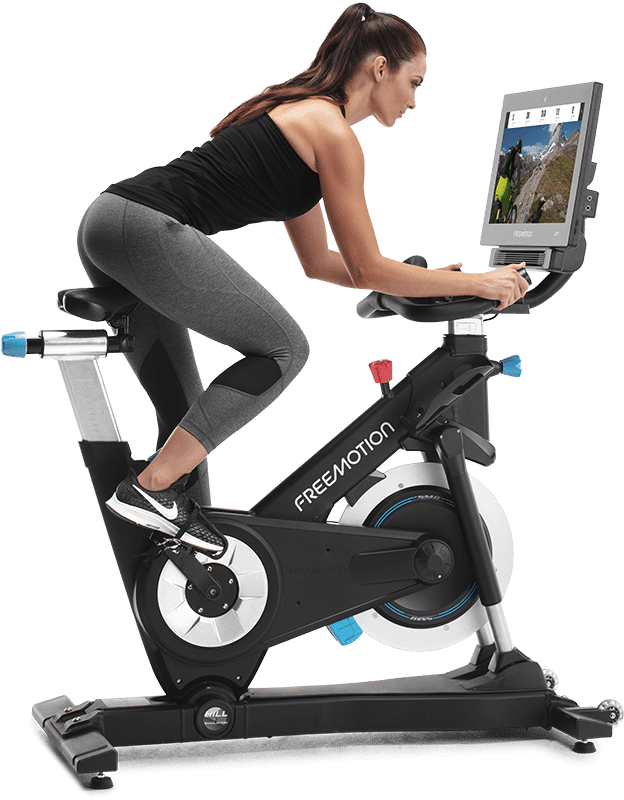

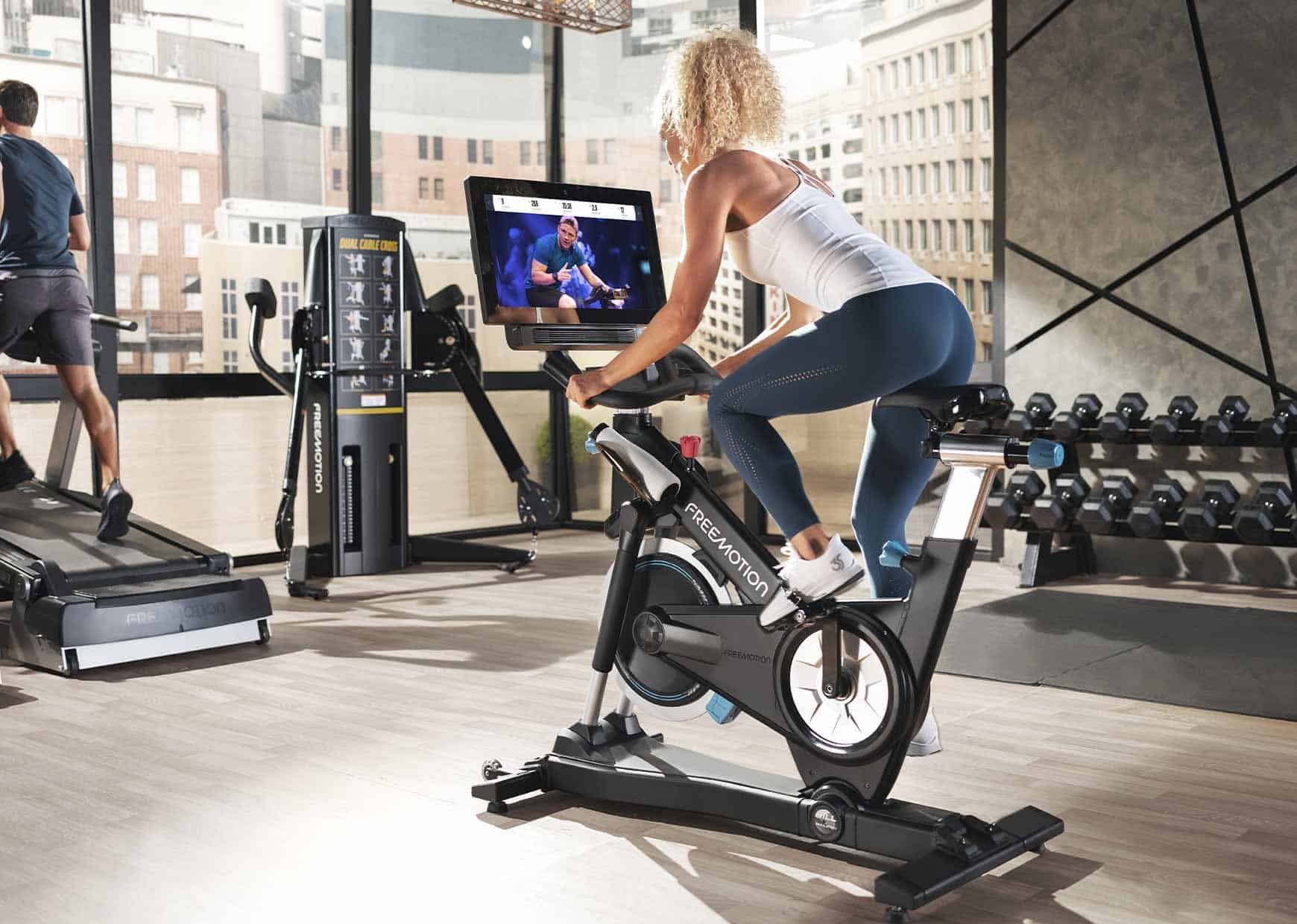

Freemotion b22.7 COACHBIKE™ will engage and retain your members with the immersive cycling experience that keeps them coming back for more. With auto-adjusting technology that matches the incline and decline of the on-screen terrain the CoachBike delivers an unrivaled immersive experience.

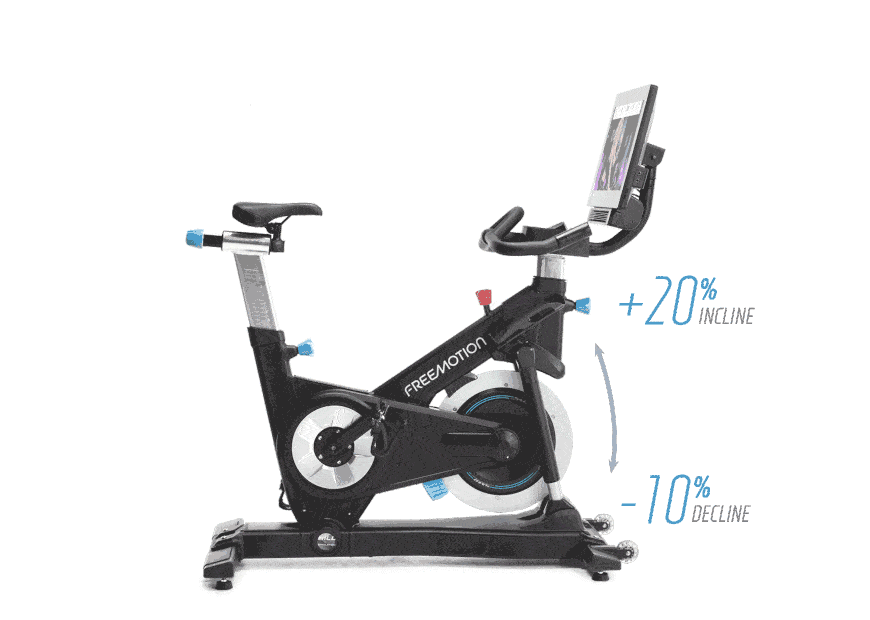

IMMERSIVE CYCLING EXPERIENCE Cycle stunning locations around the world as your bike immersively inclines up to 20% during hill climbs and declines to -10% for breathtaking mountain descents.

A SMOOTH AND EFFECTIVE WORKOUT This maintenance-free Gates Carbon Drive System delivers the same quiet, smooth ride that a belt drive provides, with the strength and production of a chain. When combined with the efficiency and performance of a fixed wheel and the most engaging content available, it provides the ultimate riding experience.

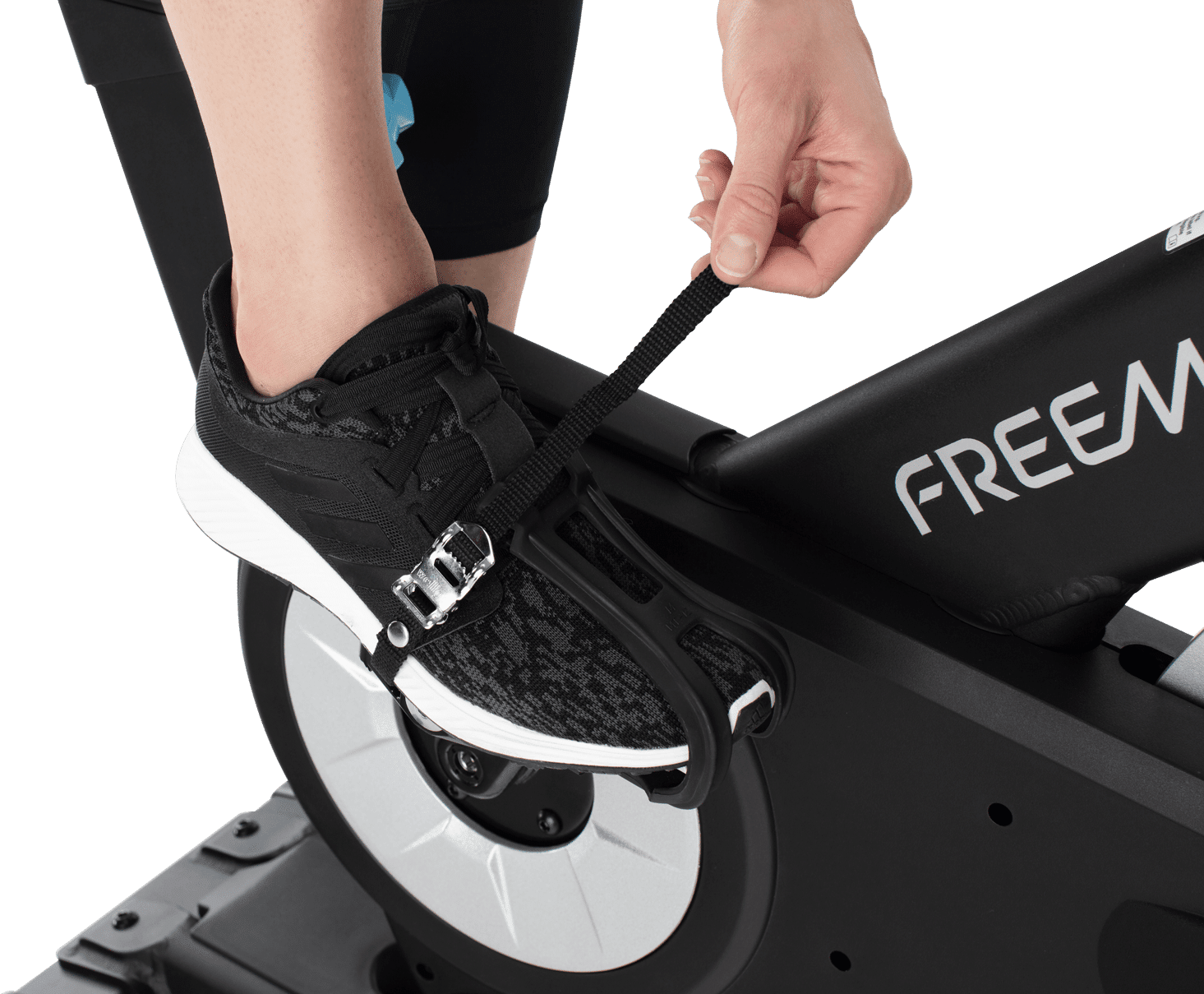

MAXIMUM PERFORMANCE The dual-sided pedals accommodate both high-performance SPD cleats and traditional fitness footwear to maximize your power and your performance results.

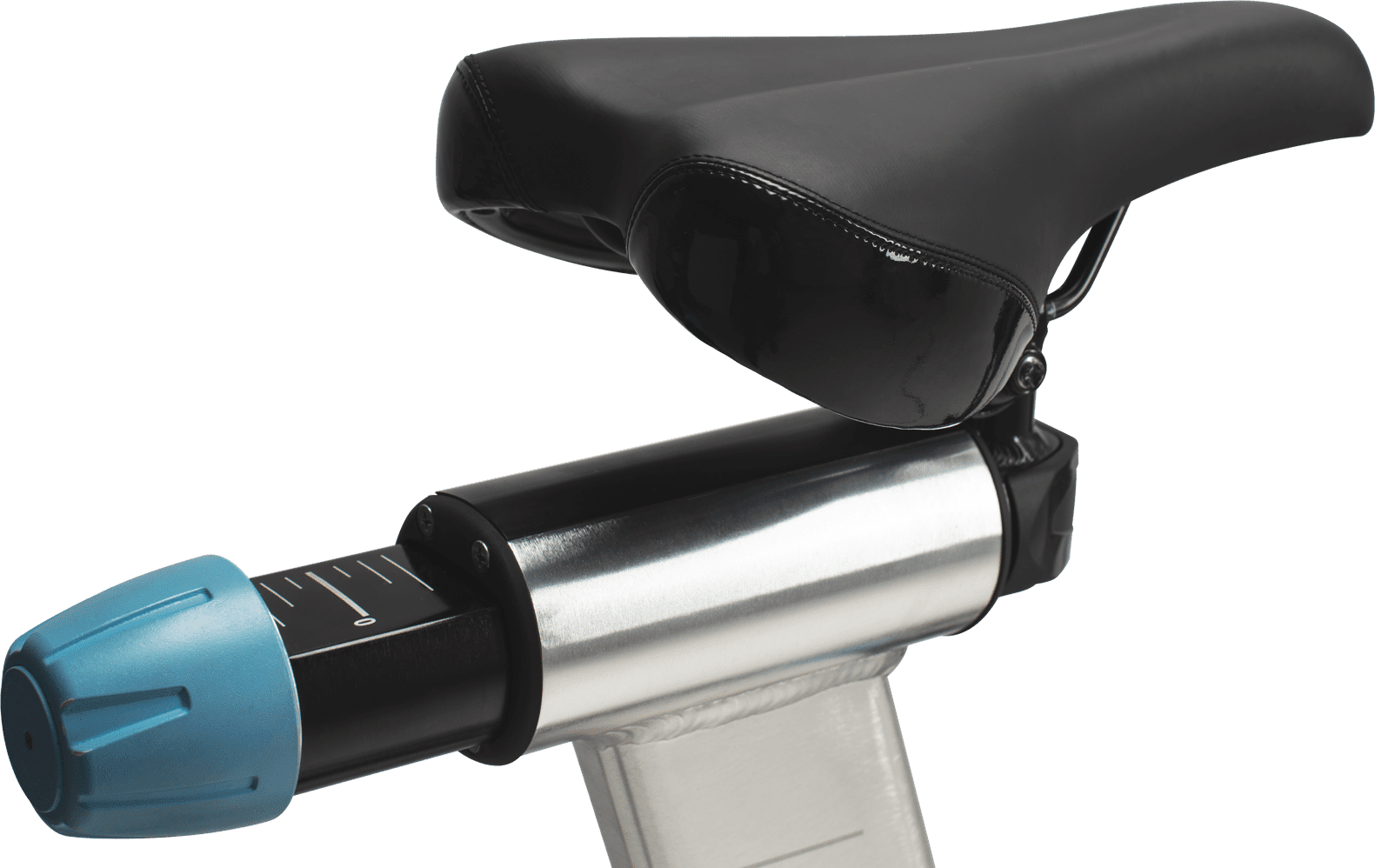

CUSTOMIZE YOUR RIDE With hundreds of seat and handlebar configurations available in seconds, the CoachBike can quickly adapt to everybody.

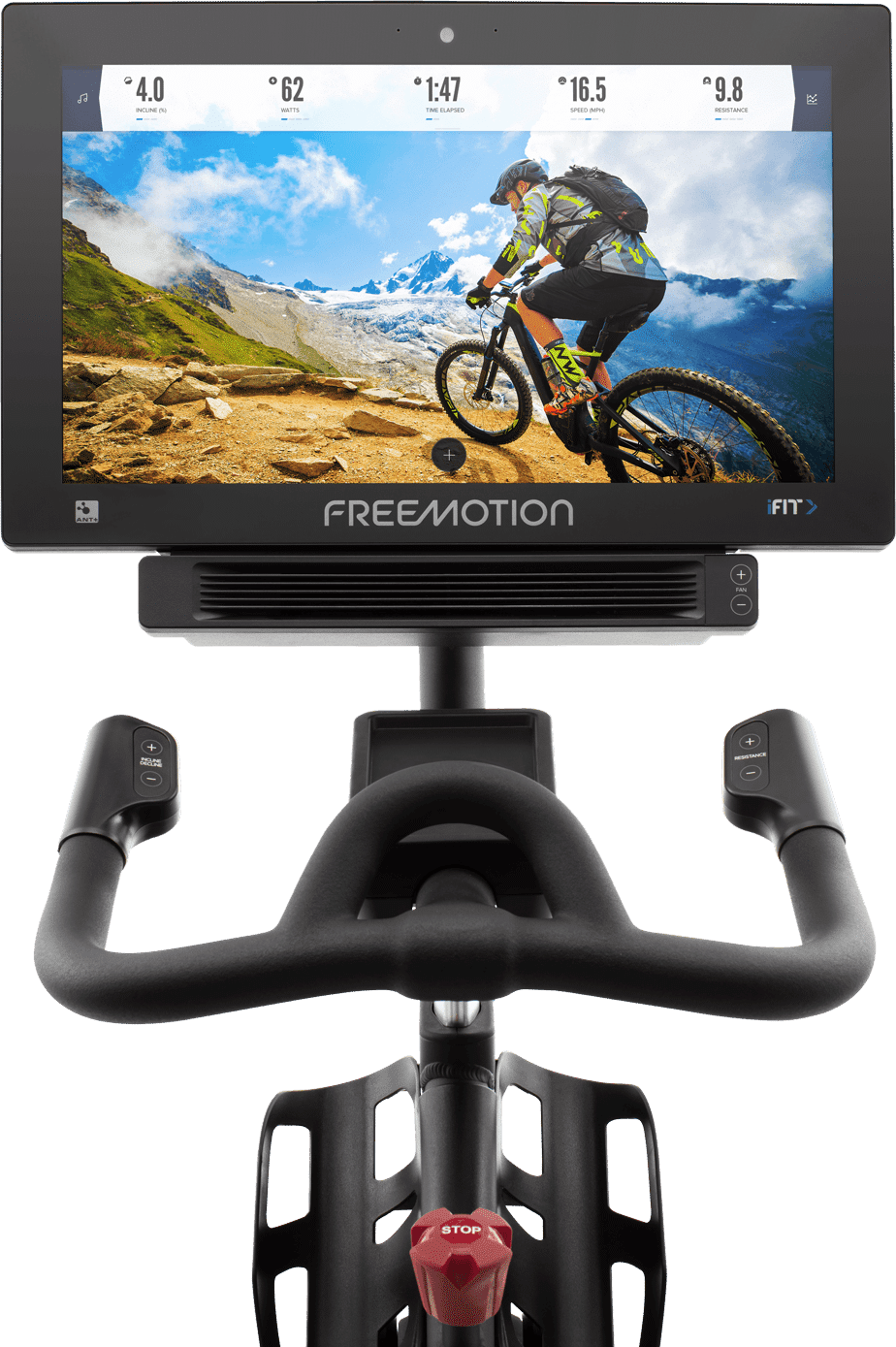

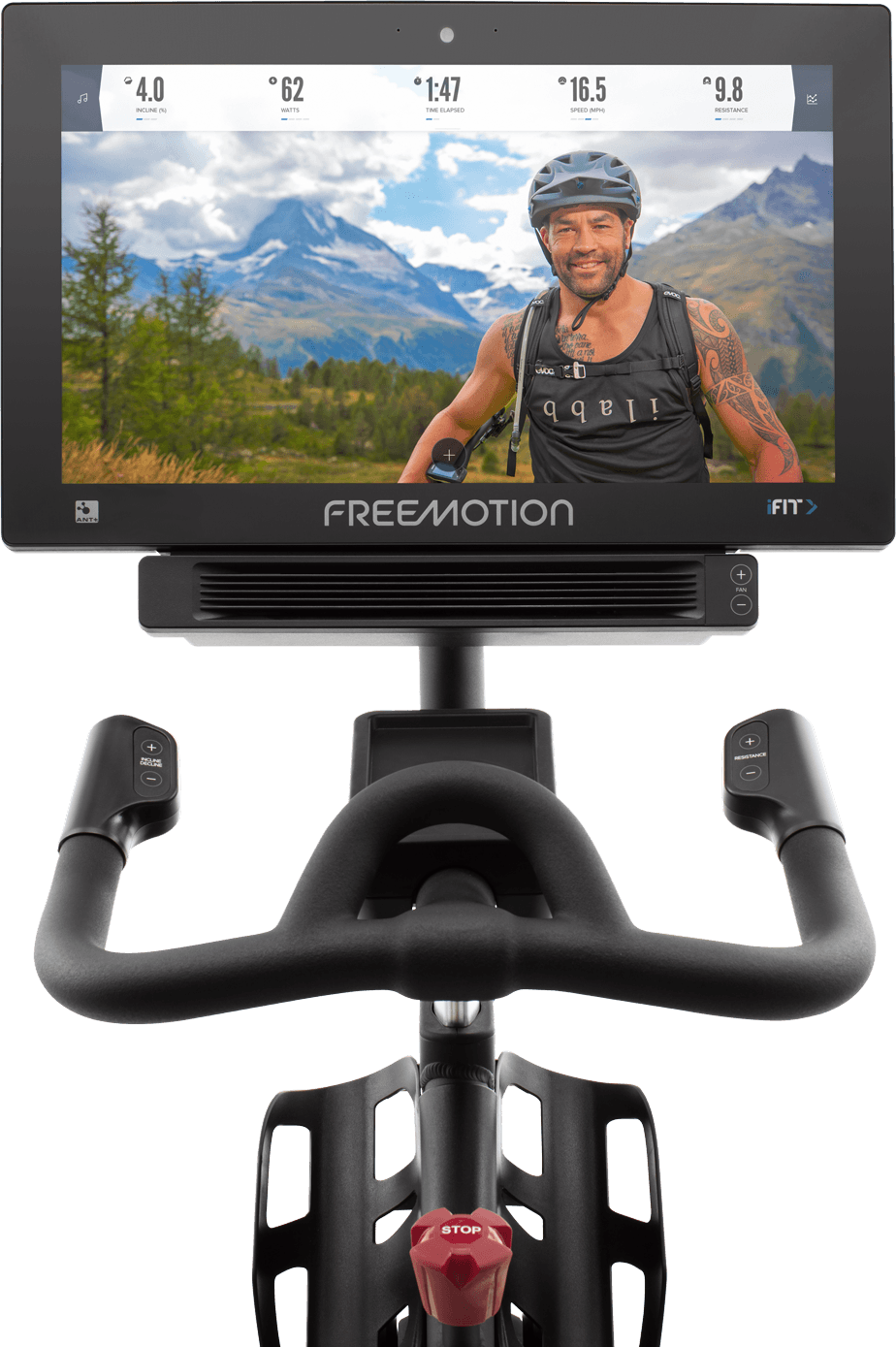

HIGH-DEFINITION DISPLAY Immerse yourself in visually stunning imagery while working out in exotic locations around the globe on this high-definition 22in / 55cm capacitive touchscreen.

A COOL WORKOUT Stay cool throughout the workout with a conveniently-located 3-speed fan, or select the AutoBreeze™ function to enjoy a variable flow that responds to your pace.

AUDIO-ENHANCED EXPERIENCE Deeply immerse yourself in your workout with an enhanced audio experience when connecting via Bluetooth or headphone jack.

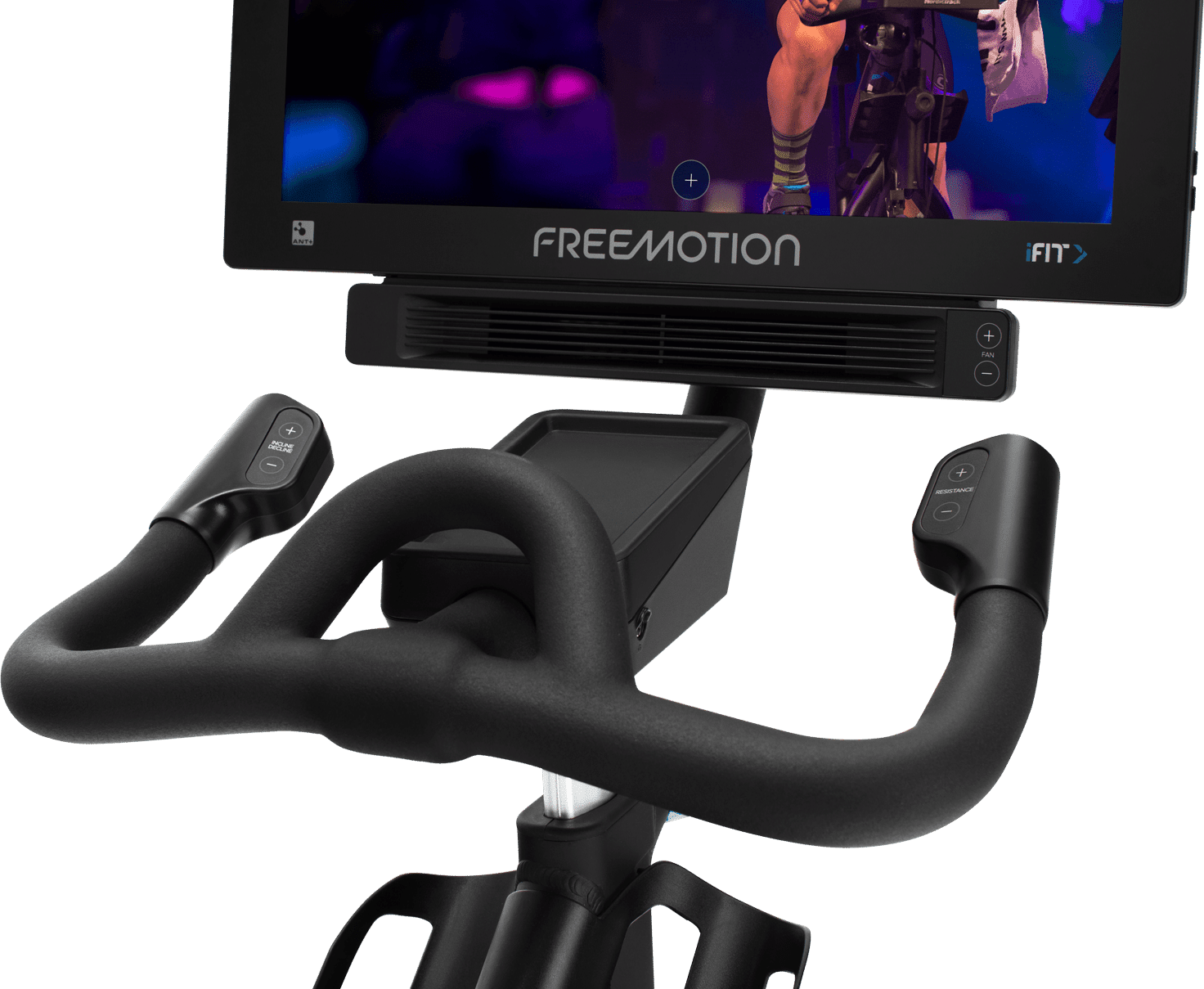

ON-THE-FLY ADJUSTMENTS Override or adapt the programming to meet your needs by quickly adjusting the bike’s resistance, incline, and decline with controls conveniently placed directly on the handlebars.

KNOW YOUR ZONE Get real-time data during your workout with your ANT+ or Polar® heart-rate monitor, so you know when you’re in the ideal heart-healthy zone.

POWER UP Charge your devices during your workout with a convenient USB port.

ADVANCED WORKOUT METRICS Never lose sight of your personal fitness goals with real-time metrics that go beyond traditional feedback, leveraging heart rate, intensity, incline statistics, and more to measure and track your fitness journey.

Product Information Sheet DOWNLOAD PDF
Product Digital Leaflet DOWNLOAD PDF
Line Brochure DOWNLOAD PDF
Warranty Information DOWNLOAD PDF
Infrastructure Requirements DOWNLOAD PDF

ENQUIRE HERE

Description

Freemotion b22.7 COACHBIKE™ Features

Display Type 22 in / 55 cm HD Capacitive Touchscreen
Resolution 1080p ISP LCD Screen
Controls Touchscreen, On-handle Digital Controls
Workout Metrics Speed, Incline, Distance, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
Number of Programs Thousands of Global Workouts and Studio Classes with iFIT
Preset Programs Limitless iFIT Training Options
Google Maps Enabled
Console Language(s) English
Featured Languages EN, also DE, ES, FR, IT, PT, RU, ZH
Maximum Workout Time 99:59 (99 Minutes + 59 Seconds)
Maximum Pause Time 60 Seconds
Additional Options Quick-Start Manual Mode

ENTERTAINMENT

TV Tuner US & Canada: NTSC/ATSC, QAM, Pro Idiom, Set-Top Box Ready
International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C
Closed Captioning CC1-4, TEXT 1-4

CONNECTIVITY

Recommended Internet Connection Dedicated Ethernet – Cat 6
Ethernet Requirements Cat6 Preferred (Cat5e or higher required)
WiFi Connection 2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)
WiFi Minimum Requirements 10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
Video Connections Coax, HDMI Input
Audio Connections 3.5 mm Audio Out, Bluetooth

PRODUCT FEATURES

Crank & Axle 3-Piece Crank
Drive Belt Quiet Belt Drive System, Hutchinson
Pedals Oversized, Adjustable Pedals
Gear Ratio N/A
Resistance System 400 Watt EMS Brake Resistance System
Heart Rate Monitoring Dual EKG Pulse Sensors, ANT+ and Polar Compatible
Workout Fan N/A
Accessory Charging USB Charging Port
Accessory Holder(s) Dual Water Bottle Holders, Phone Holder
Grips Soft touch, upper-body grips
Seat Overmolded Quick Adjust Seat
Accessibility Highly-Accessible Step-Thru™ Design
Positioning Large Adjustable Leveling Feet
Transport Wheels 2 in / 5 cm plastic transport wheels
Color Options N/A (Flat Black is standard color)
Unit Options Metric or Imperial
Power Options 110-120 VAC, 2 Amp 220-240 VAC, 1 Amp

PRODUCT SPECIFICATIONS

Maximum User Weight 400 lb / 181 kg
Resistance Levels 1-24 Levels of Resistance

DIMENSIONS & WEIGHT

Product Dimensions L x W x H 50 x 24 x 58 in / 127 x 60.9 x 147.3 cm
Product Weight 176.4 lb / 80 kg
Shipping Dimensions L x W x H 53 x 24 x 58 in / 134.6 x 60.9 x 147.3 cm
Shipping Weight 206 lb / 93.4 kg

With over 20 years of industry-leading experience, Freemotion understands operators’ needs and exercisers’ expectations better than anyone else. Freemotion is a subsidiary of iFIT Health & Fitness Inc., whose family of industry-leading brands, including NordicTrack, ProForm, Weider, Sweat and 29029. Freemotion delivers transformative experiences with its groundbreaking products found in facilities around the world.

To see the quality of our used and new commercial gym equipment with your own eyes call us 02 9008 1481 or jump online and look at just of a sample of what we have in our 2,000 square metre warehouse in Banksmeadow. Pricing does not include delivery, installation or GST. We can also help you with finance available through Fitlease.

Additional information

Condition	New
